SYWV-75 Polyethylene Insulated Four-Layer Shielded PVC Sheathed 75 Coaxial Cable
Implementation criteria: SJ/T11138.3-1997, GY/T135-1998
Minimum bending radius: 35mm (indoor installation) 70mm (outdoor installation)
Working Temperature: - 15 ~70

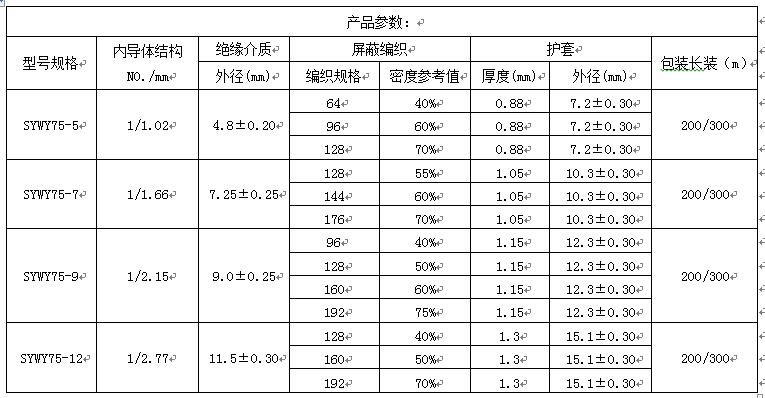

- Product Model, Production Range
- Product Usage

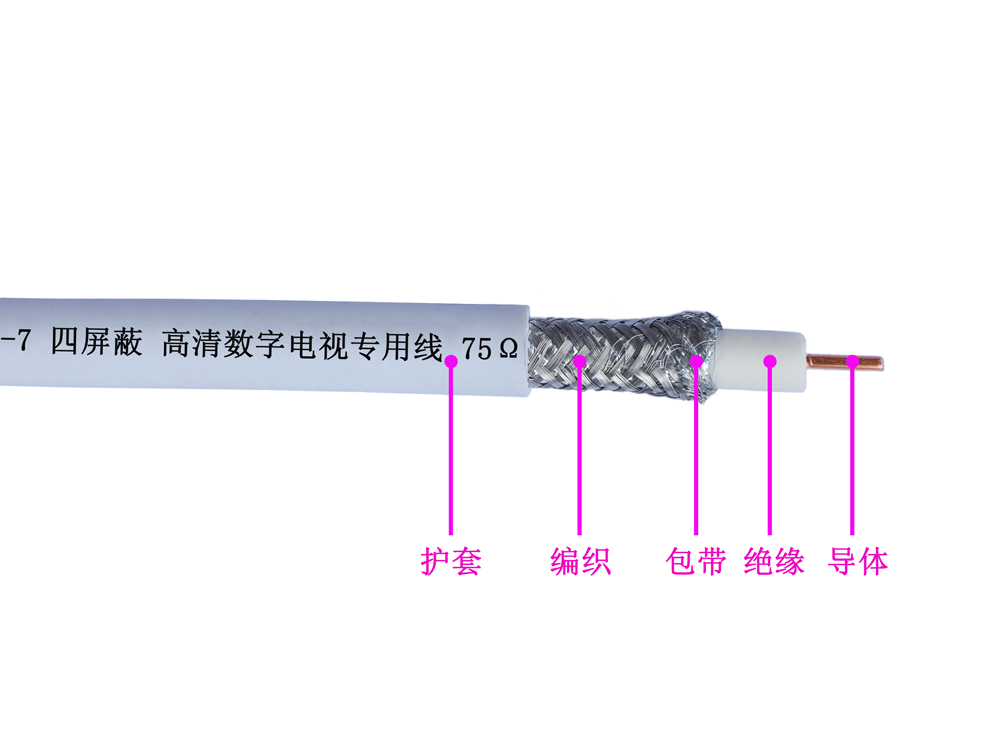

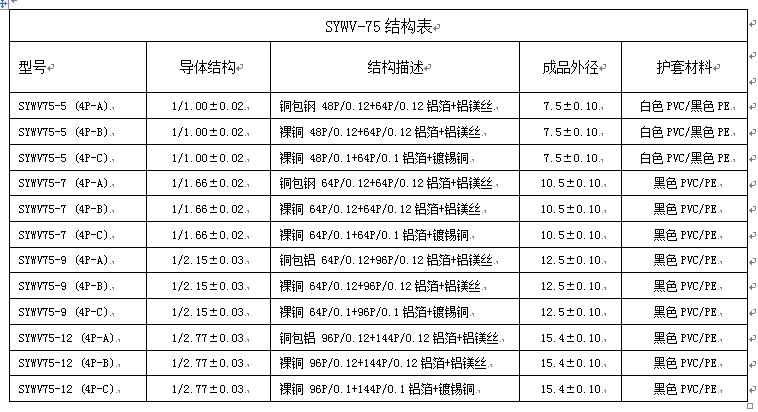

- Product Structure

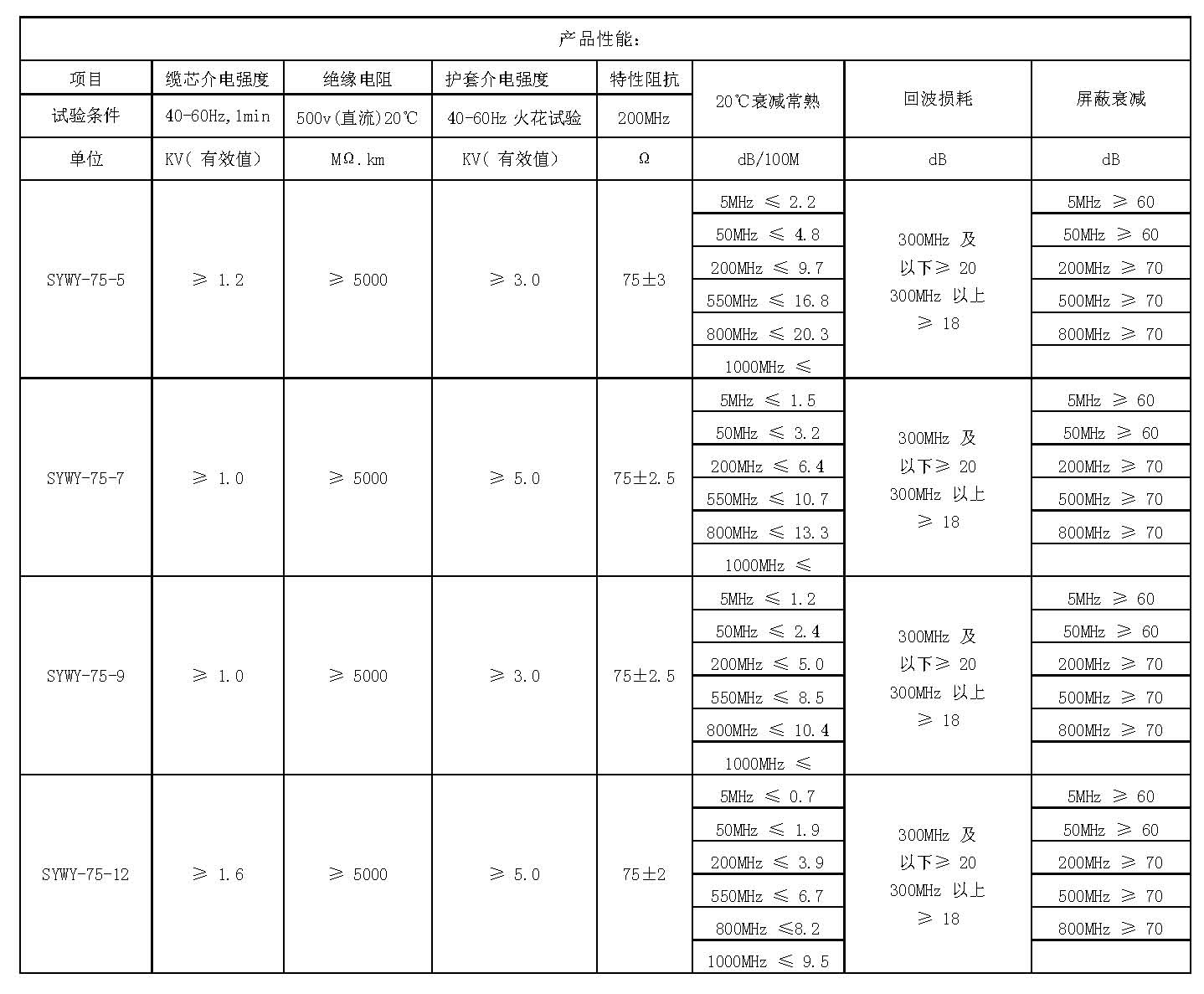

- Product Performance
- Product Advantage (Selling Point)
- Product Code Identification
-
-
It is used in closed-circuit TV system under 1GHz, common antenna TV system, cable TV system as branch line and subscriber line and physical foamed polyethylene insulated coaxial cable for other electronic devices.
-
-
1. Conductors are made of high purity oxygen-free copper with lower attenuation impedance and better conduction.2. Double-layer 100% cover with aluminum foil and polyester film shielding layer, completely isolate EMI/RFI and other clutter signal interference.3. Double-layer high-density tin-plated copper braided net shielding layer to enhance the isolation of EMI/RFI and other clutter interference4. Nitrogen-injected foamed polyethylene insulation, 75 ohm characteristic impedance, bandwidth up to 1000MHz5. Antioxidant high-quality PVC sheath, wear resistance, anti-interference, more flexible, environmentally friendly material, in line with ROHS standards.6. 200m/300m per volume or customized length
-
