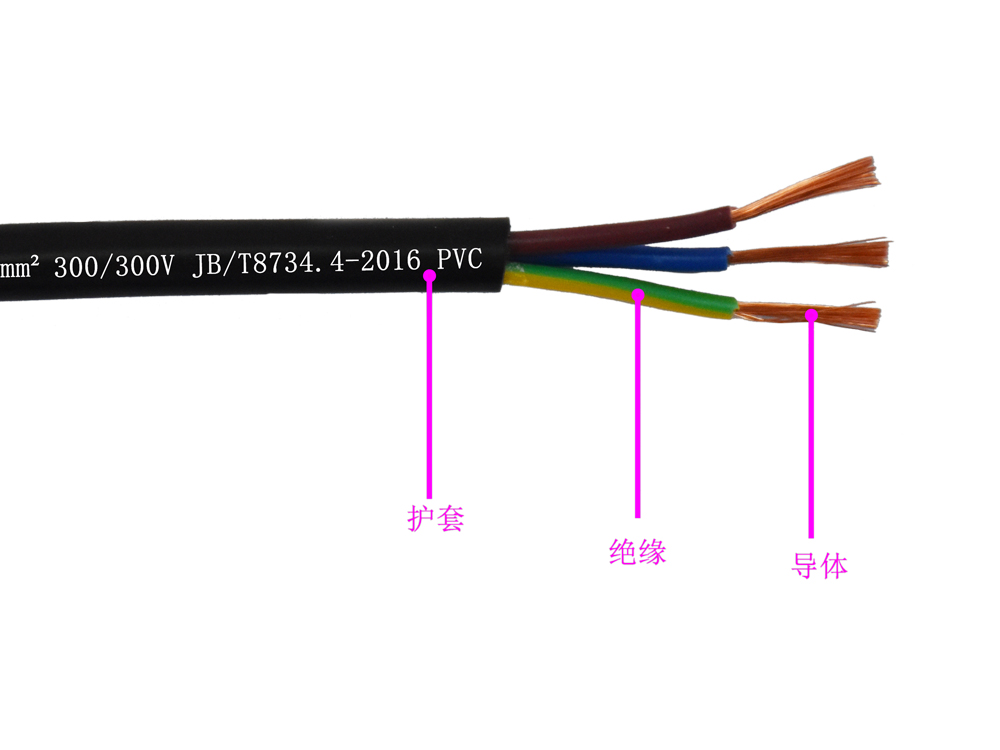

AVVR 型 300/300V 銅芯聚氯乙烯絕緣聚氯乙烯護套安裝用軟電線的綜合數據 | ||||||||
芯線×标截面(mm2) | 導體結構(NO./mm) | 絕緣厚度規定值 | 護套厚度規定值 | 平均外徑 | 20℃時導體電阻最大值(Ω/KM) | 70℃或90℃時絕緣電阻最小值(MΩ/KM) | ||
下限 | 上限 | 銅芯 | 鍍錫銅芯 | |||||
2×0.08 | 7/0.12 | 0.4 | 0.6 | 3.12.3×3.4 | 4.12.7×4.1 | 247 | 254 | 0.018 |
2×0.12 | 7/0.15 | 0.4 | 0.6 | 3.32.4×3.6 | 4.32.8×4.3 | 158 | 163 | 0.016 |
2×0.2 | 12/0.15 | 0.4 | 0.6 | 3.62.5×3.9 | 4.73.0×4.7 | 92.3 | 95 | 0.014 |
2×0.3 | 16/0.15 | 0.5 | 0.6 | 4.12.8×4.4 | 5.33.4×5.3 | 69.2 | 71.2 | 0.014 |
2×0.4 | 23/0.15 | 0.5 | 0.6 | 4.42.9×4.7 | 5.73.5×5.7 | 48.2 | 49.6 | 0.013 |
3×0.12 | 7/0.15 | 0.4 | 0.6 | 3.4 | 4.5 | 158 | 163 | 0.016 |
3×0.2 | 12/0.15 | 0.4 | 0.6 | 3.8 | 4.9 | 92.3 | 95 | 0.014 |
3×0.3 | 16/0.15 | 0.5 | 0.6 | 4.4 | 5.7 | 69.2 | 71.2 | 0.014 |
3×0.4 | 23/0.15 | 0.5 | 0.6 | 4.7 | 6 | 48.2 | 49.6 | 0.013 |
4×0.12 | 7/0.15 | 0.4 | 0.6 | 3.8 | 4.9 | 158 | 163 | 0.016 |
4×0.2 | 12/0.15 | 0.4 | 0.6 | 4.2 | 5.4 | 92.3 | 95 | 0.014 |
4×0.3 | 16/0.15 | 0.5 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 0.014 |
4×0.4 | 23/0.15 | 0.5 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 0.013 |
5×0.12 | 7/0.15 | 0.4 | 0.6 | 4.1 | 5.3 | 158 | 163 | 0.016 |
5×0.2 | 12/0.15 | 0.4 | 0.6 | 4.5 | 5.8 | 92.3 | 95 | 0.014 |
5×0.3 | 16/0.15 | 0.5 | 0.6 | 5.3 | 6.7 | 69.2 | 71.2 | 0.014 |
5×0.4 | 23/0.15 | 0.5 | 0.6 | 5.6 | 7.2 | 48.2 | 49.6 | 0.013 |
(6、7)×0.12 | 7/0.15 | 0.4 | 0.6 | 4.4 | 5.7 | 158 | 163 | 0.016 |
(6、7)×0.2 | 12/0.15 | 0.4 | 0.6 | 4.9 | 6.3 | 92.3 | 95 | 0.014 |
(6、7)×0.3 | 16/0.15 | 0.5 | 0.6 | 5.7 | 7.3 | 69.2 | 71.2 | 0.014 |
(6、7)×0.4 | 23/0.15 | 0.5 | 0.6 | 6.2 | 7.8 | 48.2 | 49.6 | 0.013 |
3×2×0.4+1×0.4 | 23/0.15 | 0.5 | 0.6 | 6.8 | 9 | 48.2 | 49.2 | 0.013 |
8×0.12 | 7/0.15 | 0.4 | 0.6 | 5.3 | 6.5 | 158 | 163 | 0.016 |
8×0.2 | 12/0.15 | 0.4 | 0.6 | 5.6 | 7.2 | 92.3 | 95 | 0.014 |
8×0.3 | 16/0.15 | 0.5 | 0.6 | 6.5 | 8.2 | 69.2 | 71.2 | 0.014 |
8×0.4 | 23/0.15 | 0.5 | 0.6 | 7 | 8.6 | 48.2 | 49.6 | 0.013 |
9×0.12 | 7/0.15 | 0.4 | 0.6 | 5.5 | 7.2 | 158 | 163 | 0.016 |
9×0.2 | 12/0.15 | 0.4 | 0.6 | 6 | 7.6 | 92.3 | 95 | 0.014 |
9×0.3 | 16/0.15 | 0.5 | 0.8 | 7.2 | 9 | 69.2 | 71.2 | 0.014 |
9×0.4 | 23/0.15 | 0.5 | 0.8 | 7.8 | 9.2 | 48.2 | 49.6 | 0.013 |
10×0.12 | 7/0.15 | 0.4 | 0.6 | 5.7 | 7.2 | 158 | 163 | 0.016 |
10×0.2 | 12/0.15 | 0.4 | 0.6 | 6.3 | 8 | 92.3 | 95 | 0.014 |
10×0.3 | 16/0.15 | 0.5 | 0.8 | 7.8 | 9.7 | 69.2 | 71.2 | 0.014 |
10×0.4 | 23/0.15 | 0.5 | 0.8 | 8.3 | 10.4 | 48.2 | 49.6 | 0.013 |
12×0.12 | 7/0.15 | 0.4 | 0.6 | 5.8 | 7.4 | 158 | 163 | 0.016 |
12×0.2 | 12/0.15 | 0.4 | 0.6 | 6.5 | 8.2 | 92.3 | 95 | 0.014 |
12×0.3 | 16/0.15 | 0.5 | 0.8 | 8 | 10.1 | 69.2 | 71.2 | 0.014 |
12×0.4 | 23/0.15 | 0.5 | 0.8 | 8.6 | 10.8 | 48.2 | 49.6 | 0.013 |
14×0.12 | 7/0.15 | 0.4 | 0.6 | 6.1 | 7.8 | 158 | 163 | 0.016 |
14×0.2 | 12/0.15 | 0.4 | 0.8 | 7.2 | 9.1 | 92.3 | 95 | 0.014 |
14×0.3 | 16/0.15 | 0.5 | 0.8 | 8.4 | 10.6 | 69.2 | 71.2 | 0.014 |
14×0.4 | 23/0.15 | 0.5 | 0.8 | 9.1 | 11.3 | 48.2 | 49.6 | 0.013 |
16×0.12 | 7/0.15 | 0.4 | 0.6 | 6.5 | 8.2 | 158 | 163 | 0.016 |
16×0.2 | 12/0.15 | 0.4 | 0.8 | 7.6 | 9.6 | 92.3 | 95 | 0.014 |
16×0.3 | 16/0.15 | 0.5 | 0.8 | 8.9 | 11.1 | 69.2 | 71.2 | 0.014 |
16×0.4 | 23/0.15 | 0.5 | 0.8 | 9.6 | 11.9 | 48.2 | 49.6 | 0.013 |
18×0.12 | 7/0.15 | 0.4 | 0.8 | 7.8 | 9.2 | 158 | 163 | 0.016 |
18×0.2 | 12/0.15 | 0.4 | 0.8 | 8.6 | 10 | 92.3 | 95 | 0.014 |
18×0.3 | 16/0.15 | 0.5 | 0.8 | 9.5 | 11 | 69.2 | 71.2 | 0.014 |
18×0.4 | 23/0.15 | 0.5 | 0.8 | 10.5 | 11.6 | 48.2 | 49.6 | 0.013 |
19×0.12 | 7/0.15 | 0.4 | 0.8 | 7.2 | 9.1 | 158 | 163 | 0.016 |
19×0.2 | 12/0.15 | 0.4 | 0.8 | 8.1 | 10.1 | 92.3 | 95 | 0.014 |
19×0.3 | 16/0.15 | 0.5 | 0.8 | 9.4 | 11.7 | 69.2 | 71.2 | 0.014 |
19×0.4 | 23/0.15 | 0.5 | 0.8 | 10.1 | 12.6 | 48.2 | 49.6 | 0.013 |
20×0.12 | 7/0.15 | 0.4 | 0.8 | 8 | 9.5 | 158 | 163 | 0.016 |
20×0.2 | 12/0.15 | 0.4 | 0.8 | 8.8 | 11 | 92.3 | 95 | 0.014 |
20×0.3 | 16/0.15 | 0.5 | 0.8 | 10 | 12.3 | 69.2 | 71.2 | 0.014 |
20×0.4 | 23/0.15 | 0.5 | 0.8 | 10.8 | 12.5 | 48.2 | 49.6 | 0.013 |
24×0.12 | 7/0.15 | 0.4 | 0.8 | 8.4 | 10.6 | 158 | 163 | 0.016 |
24×0.2 | 12/0.15 | 0.4 | 0.8 | 9.4 | 11.7 | 92.3 | 95 | 0.014 |
24×0.3 | 16/0.15 | 0.5 | 1 | 11.4 | 14.2 | 69.2 | 71.2 | 0.014 |
24×0.4 | 23/0.15 | 0.5 | 1 | 12.3 | 15.2 | 48.2 | 49.6 | 0.013 |
26×0.12 | 7/0.15 | 0.4 | 0.8 | 8.9 | 10.7 | 158 | 163 | 0.016 |
26×0.2 | 12/0.15 | 0.4 | 0.8 | 9.8 | 12 | 92.3 | 95 | 0.014 |
26×0.3 | 16/0.15 | 0.5 | 1 | 11.8 | 13.5 | 69.2 | 71.2 | 0.014 |
26×0.4 | 23/0.15 | 0.5 | 1 | 12.5 | 14 | 48.2 | 49.6 | 0.013 |
28×0.12 | 7/0.15 | 0.4 | 0.8 | 9.4 | 11.6 | 158 | 163 | 0.016 |
28×0.2 | 12/0.15 | 0.4 | 1 | 10.6 | 13 | 92.3 | 95 | 0.014 |
28×0.3 | 16/0.15 | 0.5 | 1 | 12.2 | 14.5 | 69.2 | 71.2 | 0.014 |
28×0.4 | 23/0.15 | 0.5 | 1 | 13 | 15.2 | 48.2 | 49.6 | 0.013 |
30×0.12 | 7/0.15 | 0.4 | 0.8 | 9.5 | 12.5 | 158 | 163 | 0.016 |
30×0.2 | 12/0.15 | 0.4 | 1 | 10.8 | 13.2 | 92.3 | 95 | 0.014 |
30×0.3 | 16/0.15 | 0.5 | 1 | 12.5 | 15.5 | 69.2 | 71.2 | 0.014 |
30×0.4 | 23/0.15 | 0.5 | 1 | 13.5 | 16 | 48.2 | 49.6 | 0.013 |
适用于建築樓宇對講系統,防盜報警系統及其他弱電系統的控制和信号傳輸等
1. 電纜長期允許工作溫度應不超過 70℃
2. 電纜敷設溫度應不低于 0℃
3. 允許彎曲半徑, 電纜外徑(D)小于等于16mm時,應不小于4D,大于16mm時,應不小于6D
4. 護套材料爲優質聚氯乙烯,抗老化,耐磨損,防水,防油,防化學腐蝕,無毒等特性5. 100m/200m/300m 每卷或定制長度
