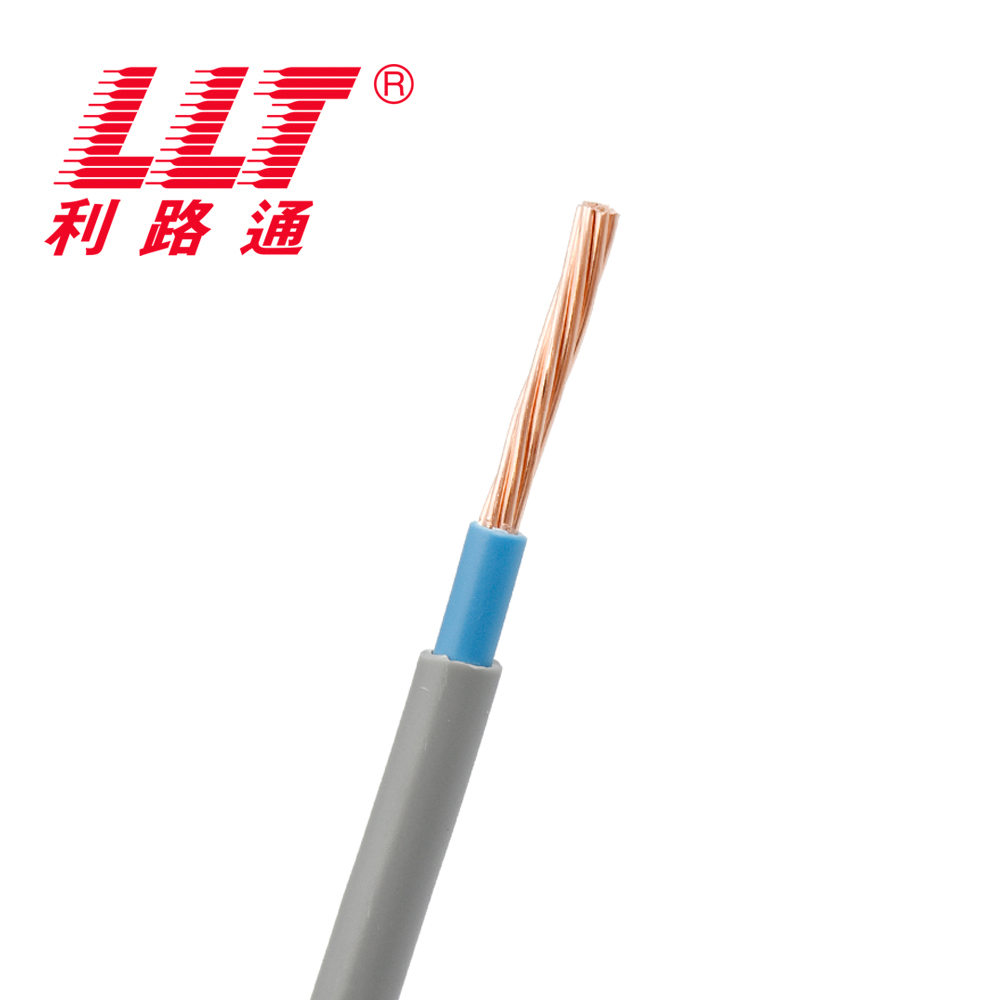

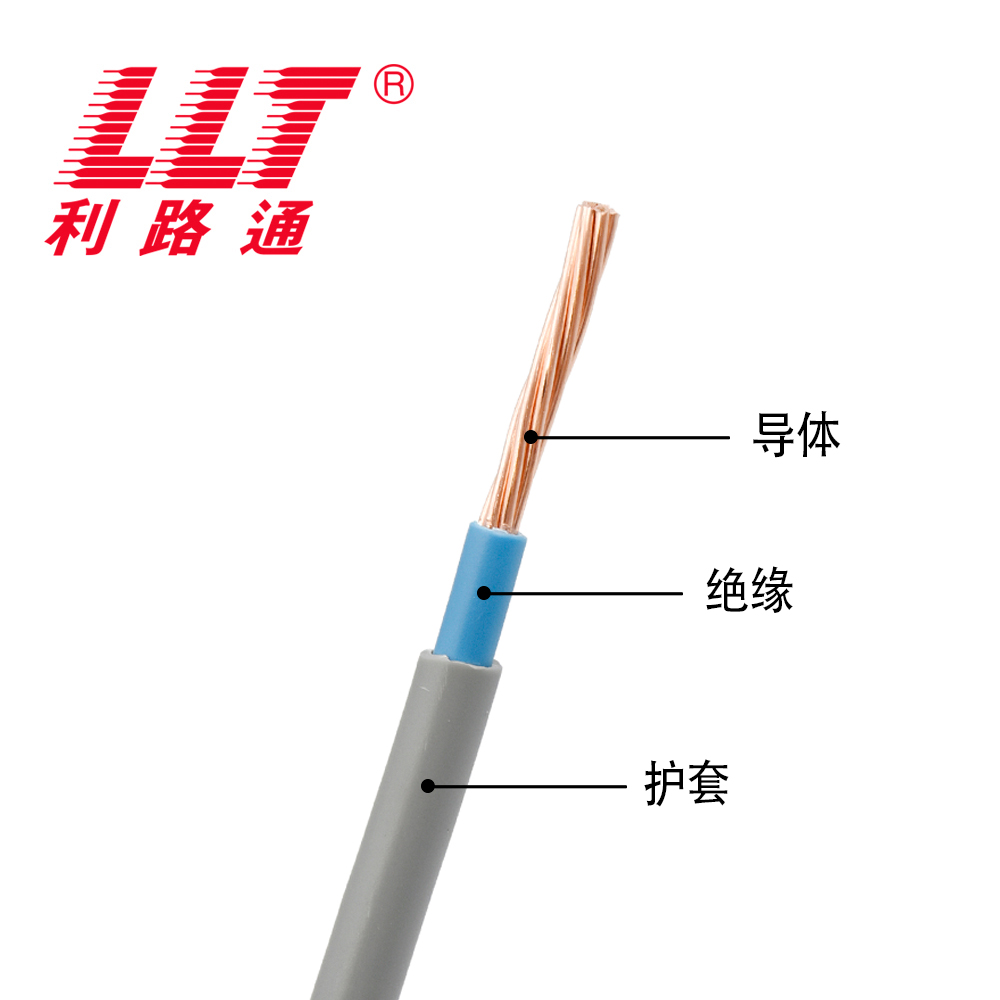

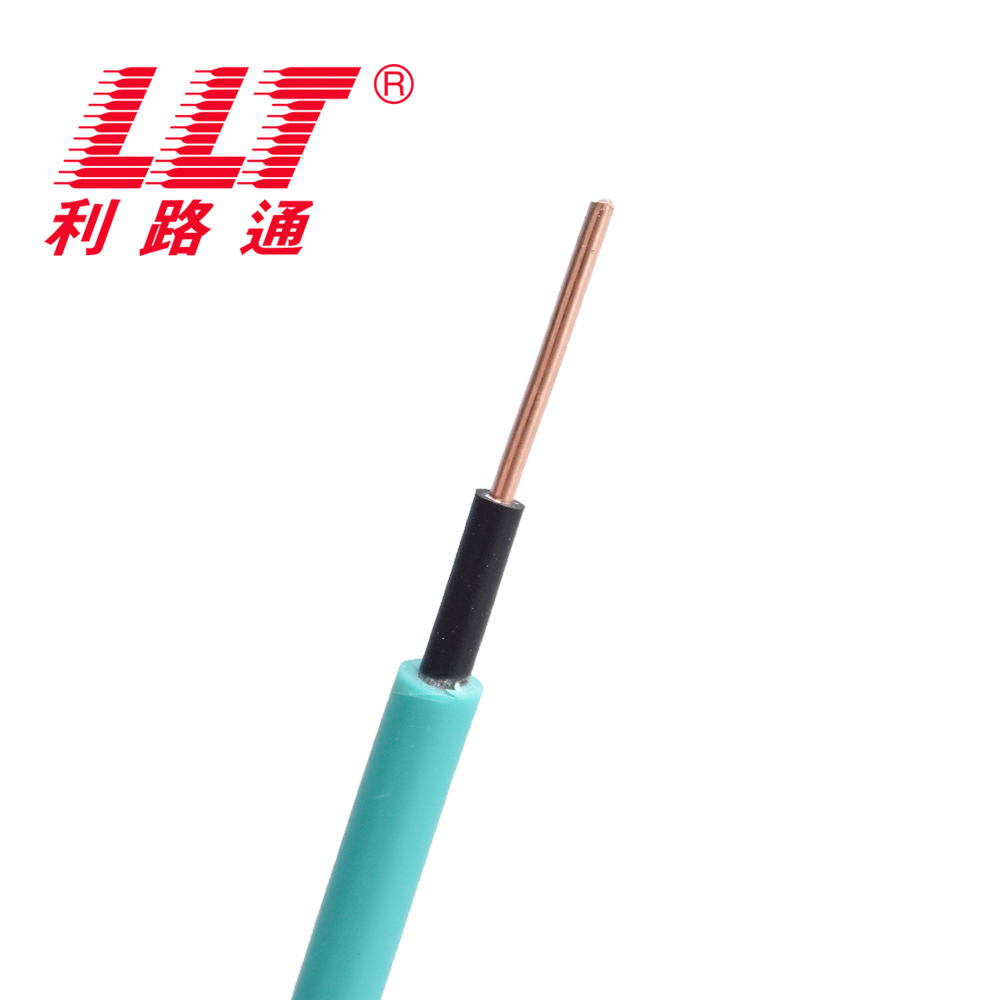

60227 IEC 10(BVV) 型300/500V 銅芯聚氯乙烯絕緣線的綜合數據 | |||||||||
芯線×标稱截面(mm2) | 導體結構(NO./mm) | 絕緣厚度規定值 | 内護層厚度近似值 | 護套厚度規定值 | 平均外形尺寸 | 20℃時導體電阻最大值(Ω/KM) | 70℃時絕緣電阻最小值(MΩ/KM) | ||
下限 | 上限 | 銅芯 | 鍍錫銅芯 | ||||||
2×1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 7.6 | 10 | 12.1 | 12.2 | 0.011 |
7/0.52 | 7.8 | 10.5 | 12.1 | 12.2 | 0.01 | ||||
2×2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 8.6 | 11.5 | 7.41 | 7.56 | 0.01 |
7/0.68 | 9 | 12 | 7.41 | 7.56 | 0.009 | ||||
2×4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 9.6 | 12.5 | 4.61 | 4.7 | 0.0085 |
7/0.85 | 10 | 13 | 4.61 | 4.7 | 0.0077 | ||||
2×6 | 1/2.76 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 3.08 | 3.11 | 0.007 |
7/1.04 | 11 | 14 | 3.08 | 3.11 | 0.0065 | ||||
2×10 | 7/1.35 | 1 | 0.6 | 1.4 | 13.5 | 17.5 | 1.83 | 1.84 | 0.0065 |
2×16 | 7/1.70 | 1 | 0.6 | 1.4 | 15.5 | 20 | 1.15 | 1.18 | 0.0052 |
2×25 | 7/2.14 | 1.2 | 0.8 | 1.4 | 18.5 | 24 | 0.727 | 0.734 | 0.005 |
2×35 | 7/2.52 | 1.2 | 1 | 1.6 | 21 | 27.5 | 0.524 | 0.529 | 0.0044 |
3×1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8 | 10.5 | 12.1 | 12.2 | 0.011 |
7/0.52 | 8.2 | 11 | 12.1 | 12.2 | 0.01 | ||||
3×2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 9.2 | 12 | 7.41 | 7.56 | 0.01 |
7/0.68 | 9.4 | 12.5 | 7.41 | 7.56 | 0.009 | ||||
3×4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 10 | 13 | 4.61 | 4.7 | 0.0085 |
7/0.85 | 10.5 | 13.5 | 4.61 | 4.7 | 0.0077 | ||||
3×6 | 1/2.76 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 3.08 | 3.11 | 0.007 |
7/1.04 | 12 | 15.5 | 3.08 | 3.11 | 0.0065 | ||||
3×10 | 7/1.35 | 1 | 0.6 | 1.4 | 14.5 | 19 | 1.83 | 1.84 | 0.0065 |
3×16 | 7/1.70 | 1 | 0.8 | 1.4 | 16.5 | 21.5 | 1.15 | 1.18 | 0.0052 |
3×25 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26 | 0.727 | 0.734 | 0.005 |
3×35 | 7/2.52 | 1.2 | 1 | 1.6 | 22 | 29 | 0.524 | 0.529 | 0.0044 |
4×1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.6 | 11.5 | 12.1 | 12.2 | 0.011 |
7/0.52 | 9 | 12 | 12.1 | 12.2 | 0.01 | ||||
4×2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 10 | 13 | 7.41 | 7.56 | 0.01 |
7/0.68 | 10 | 13.5 | 7.41 | 7.56 | 0.009 | ||||
4×4 | 1/2.25 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 4.61 | 4.7 | 0.0085 |
7/0.85 | 12 | 15 | 4.61 | 4.7 | 0.0077 | ||||
4×6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 3.08 | 3.11 | 0.007 |
7/1.04 | 13 | 17 | 3.08 | 3.11 | 0.0065 | ||||
4×10 | 7/1.35 | 1 | 0.6 | 1.4 | 16 | 20.5 | 1.83 | 1.84 | 0.0065 |
4×16 | 7/1.70 | 1 | 0.8 | 1.4 | 18 | 23.5 | 1.15 | 1.18 | 0.0052 |
4×25 | 7/2.14 | 1.2 | 1 | 1.6 | 22.5 | 28.5 | 0.727 | 0.734 | 0.005 |
4×35 | 7/2.52 | 1.2 | 1 | 1.6 | 24.5 | 32 | 0.524 | 0.529 | 0.0044 |
5×1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 9.4 | 12 | 12.1 | 12.2 | 0.011 |
7/0.52 | 9.8 | 12.5 | 12.1 | 12.2 | 0.01 | ||||
5×2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 11 | 14 | 7.41 | 7.56 | 0.01 |
7/0.68 | 11 | 14.5 | 7.41 | 7.56 | 0.009 | ||||
5×4 | 1/2.25 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 4.61 | 4.7 | 0.0085 |
7/0.85 | 13 | 17 | 4.61 | 4.7 | 0.0077 | ||||
5×6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 13.5 | 17.5 | 3.08 | 3.11 | 0.007 |
7/1.04 | 14.5 | 18.5 | 3.08 | 3.11 | 0.0065 | ||||
5×10 | 7/1.35 | 1 | 0.6 | 1.4 | 17.5 | 22 | 1.83 | 1.84 | 0.0065 |
5×16 | 7/1.7 | 1 | 0.8 | 1.6 | 20.5 | 26 | 1.15 | 1.18 | 0.0052 |
5×25 | 7/2.14 | 1.2 | 1 | 1.6 | 24.5 | 31.5 | 0.727 | 0.734 | 0.005 |
5×35 | 7/2.52 | 1.2 | 1.2 | 1.6 | 27 | 35 | 0.524 | 0.529 | 0.0044 |
适用于交流額定電壓U○/U 爲300/500V 及以下的動力裝置固定布線。
1. 電纜長期允許工作溫度應不超過70℃
2. 電纜敷設溫度應不低于0℃
3. 允許彎曲半徑, 電纜外徑(D)小于等于16mm時,應不小于4D,大于16mm時,應不小于6D
4. 絕緣和護套材料爲優質聚氯乙烯,可定制(抗老化,耐磨損,耐低溫,防水,防油,防化學腐蝕,環保,低煙無鹵等特性
5. 100m/200m/500m每卷或定制長度
