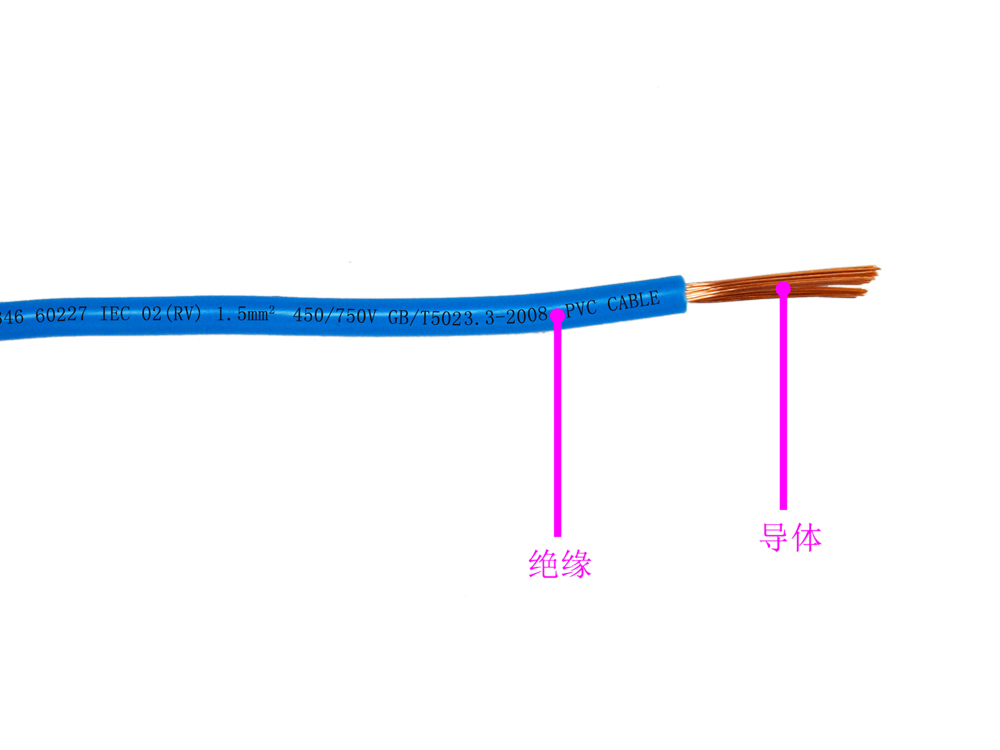

RV Copper Core General Purpose Single Core Soft Conductor Sheathless Cable
Implementation criteria: GB/T5023.3-2008
Rated voltage: U 0/U 450/750V
Rated temperature: 70 C
- Product Model, Production Range
- Product Usage
- Product Structure
- Product Performance
- Product Advantage (Selling Point)
- Product Code Identification
-
Comprehensive Data of 60227 IEC 02 (RV) Wire Conductor nominal cross section (mm2) Conductor structure (NO. / mm) Insulation Thickness Required Value (mm) Upper limit of mean outer diameter (mm) Maximum conductor resistance (_/KM) at 20 C Minimum Insulation Resistance (M_/KM) at 70 Temperature lower limit Upper limit 1.5 30/0.25 0.7 2.8 3.4 13.3 0.01 2.5 50/0.25 0.8 3.4 4.1 7.98 0.009 4 81/0.25 0.8 3.9 4.8 4.95 0.007 6 84/0.30 0.8 4.4 5.3 3.3 0.006 10 84/0.40 1 5.7 6.8 1.91 0.0056 16 126/0.40 1 6.7 8.1 1.21 0.0046 25 196/0.40 1.2 8.4 10.2 0.78 0.0044 35 276/0.40 1.2 9.7 11.7 0.554 0.0038 50 396/0.40 1.4 11.5 13.9 0.386 0.0037 70 360/0.50 1.4 13.2 16 0.268 0.0032 95 475/0.50 1.6 15.1 18.2 0.193 0.0032 120 608/0.50 1.6 16.7 20.2 0.153 0.0029 150 756/0.50 1.8 18.6 22.5 0.124 0.0029 185 925/0.50 2 20.6 24.9 0.0991 0.0029 240 1221/0.50 2.2 23.5 28.4 0.0754 0.0028 Comprehensive Data of 60227 IEC 06 (RV) 300/500V Wire Conductor nominal cross section (mm2) Conductor structure (NO. / mm) Insulation Thickness Required Value (mm) Upper limit of mean outer diameter (mm) Maximum conductor resistance (_/KM) at 20 C Minimum Insulation Resistance (M_/KM) at 70 Temperature lower limit Upper limit 0.5 16/0.20 0.6 2.1 2.5 39 0.013 0.75 24/0.20 0.6 2.2 2.7 26 0.011 1 32/0.20 0.6 2.4 2.8 19.5 0.01 Comprehensive Data of 60227 IEC 08 (RV-90) 300/500V Wire Conductor nominal cross section (mm2) Conductor structure (NO. / mm) Insulation Thickness Required Value (mm) Upper limit of mean outer diameter (mm) Maximum conductor resistance (_/KM) at 20 C Minimum Insulation Resistance (M_/KM) at 70 Temperature lower limit Upper limit 0.5 16/0.20 0.6 2.1 2.5 39 0.013 0.75 24/0.20 0.6 2.2 2.7 26 0.012 1 32/0.20 0.6 2.4 2.8 19.5 0.01 1.5 30/0.25 0.7 2.8 3.4 13.3 0.009 2.5 50/0.25 0.8 3.4 4.1 7.98 0.009
-
Copper-cored PVC insulated cables for power, lighting, household appliances, instruments and telecommunications equipment with rated AC voltage U 0/U of 450/750V or less
-
-
1. The permissible working temperature of the cable for a long time shall not exceed 70 C.2. Cable laying temperature should not be lower than 0 C.3. When the allowable bending radius is less than or equal to 16mm, the cable outer diameter D should be no less than 4D, and no less than 6D when the cable outer diameter D is greater than or equal to 16mm.4. Insulation material is high-quality polyvinyl chloride, anti-aging, wear resistance, water-proof, oil-proof, chemical corrosion-proof, non-toxic and other characteristics.5. 100m/200m/3500m per volume or customized length
-
