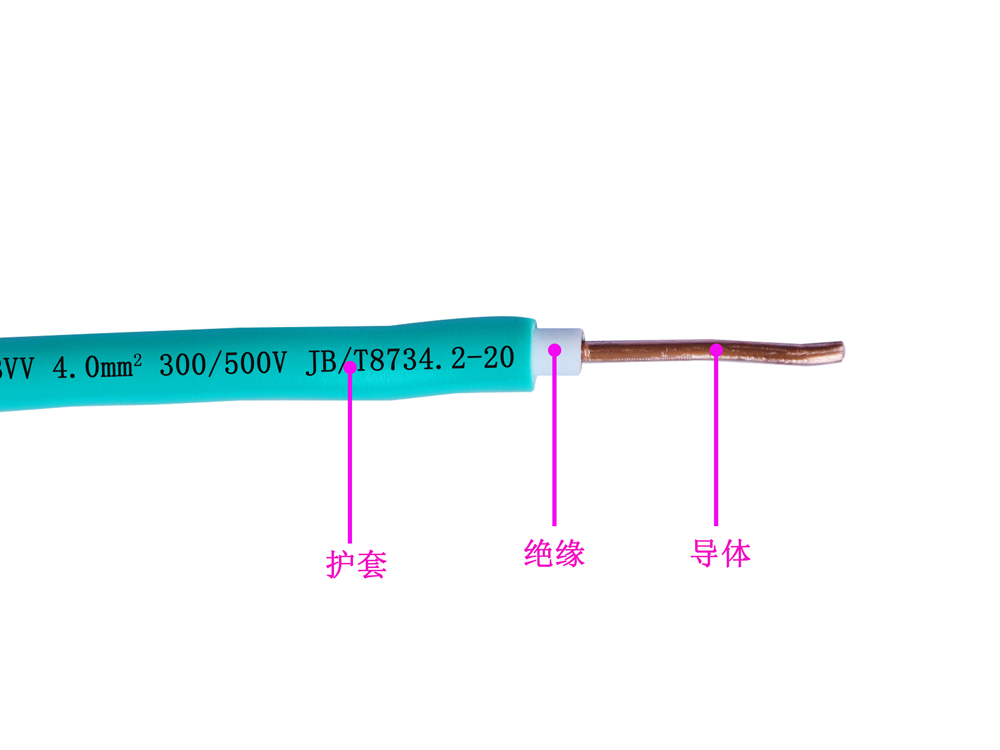

BVV Copper Conductor PVC Insulated PVC Sheath Fixed Wiring
Implementation criteria: GB/T5023.4-2008
Rated voltage: U 0/U 300/500V
- Product Model, Production Range
- Product Usage
- Product Structure
- Product Performance
- Product Advantage (Selling Point)
- Product Code Identification
-
Comprehensive Data of 60227 IEC 10 (BVV) 300/500V Copper Core PVC Insulation Wire Core line * nominal cross section (mm2) Conductor structure (NO. / mm) Insulation Thickness Required Value (mm) Approximate thickness of inner cladding (mm) Sheath Thickness Required Value (mm) Average Profile Size (mm) Maximum conductor resistance (_/KM) at 20 C Minimum Insulation Resistance (M_/KM) at 70 Temperature lower limit Upper limit Copper core Tin plated copper core 2×1.5 1/1.38 0.7 0.4 1.2 7.6 10 12.1 12.2 0.011 7/0.52 7.8 10.5 12.1 12.2 0.01 2×2.5 1/1.78 0.8 0.4 1.2 8.6 11.5 7.41 7.56 0.01 7/0.68 9 12 7.41 7.56 0.009 2×4 1/2.25 0.8 0.4 1.2 9.6 12.5 4.61 4.7 0.0085 7/0.85 10 13 4.61 4.7 0.0077 2×6 1/2.76 0.8 0.4 1.2 10.5 13.5 3.08 3.11 0.007 7/1.04 11 14 3.08 3.11 0.0065 2×10 7/1.35 1 0.6 1.4 13.5 17.5 1.83 1.84 0.0065 2×16 7/1.70 1 0.6 1.4 15.5 20 1.15 1.18 0.0052 2×25 7/2.14 1.2 0.8 1.4 18.5 24 0.727 0.734 0.005 2×35 7/2.52 1.2 1 1.6 21 27.5 0.524 0.529 0.0044 3×1.5 1/1.38 0.7 0.4 1.2 8 10.5 12.1 12.2 0.011 7/0.52 8.2 11 12.1 12.2 0.01 3×2.5 1/1.78 0.8 0.4 1.2 9.2 12 7.41 7.56 0.01 7/0.68 9.4 12.5 7.41 7.56 0.009 3×4 1/2.25 0.8 0.4 1.2 10 13 4.61 4.7 0.0085 7/0.85 10.5 13.5 4.61 4.7 0.0077 3×6 1/2.76 0.8 0.4 1.4 11.5 14.5 3.08 3.11 0.007 7/1.04 12 15.5 3.08 3.11 0.0065 3×10 7/1.35 1 0.6 1.4 14.5 19 1.83 1.84 0.0065 3×16 7/1.70 1 0.8 1.4 16.5 21.5 1.15 1.18 0.0052 3×25 7/2.14 1.2 0.8 1.6 20.5 26 0.727 0.734 0.005 3×35 7/2.52 1.2 1 1.6 22 29 0.524 0.529 0.0044 4×1.5 1/1.38 0.7 0.4 1.2 8.6 11.5 12.1 12.2 0.011 7/0.52 9 12 12.1 12.2 0.01 4×2.5 1/1.78 0.8 0.4 1.2 10 13 7.41 7.56 0.01 7/0.68 10 13.5 7.41 7.56 0.009 4×4 1/2.25 0.8 0.4 1.4 11.5 14.5 4.61 4.7 0.0085 7/0.85 12 15 4.61 4.7 0.0077 4×6 1/2.76 0.8 0.6 1.4 12.5 16 3.08 3.11 0.007 7/1.04 13 17 3.08 3.11 0.0065 4×10 7/1.35 1 0.6 1.4 16 20.5 1.83 1.84 0.0065 4×16 7/1.70 1 0.8 1.4 18 23.5 1.15 1.18 0.0052 4×25 7/2.14 1.2 1 1.6 22.5 28.5 0.727 0.734 0.005 4×35 7/2.52 1.2 1 1.6 24.5 32 0.524 0.529 0.0044 5×1.5 1/1.38 0.7 0.4 1.2 9.4 12 12.1 12.2 0.011 7/0.52 9.8 12.5 12.1 12.2 0.01 5×2.5 1/1.78 0.8 0.4 1.2 11 14 7.41 7.56 0.01 7/0.68 11 14.5 7.41 7.56 0.009 5×4 1/2.25 0.8 0.6 1.4 12.5 16 4.61 4.7 0.0085 7/0.85 13 17 4.61 4.7 0.0077 5×6 1/2.76 0.8 0.6 1.4 13.5 17.5 3.08 3.11 0.007 7/1.04 14.5 18.5 3.08 3.11 0.0065 5×10 7/1.35 1 0.6 1.4 17.5 22 1.83 1.84 0.0065 5×16 7/1.7 1 0.8 1.6 20.5 26 1.15 1.18 0.0052 5×25 7/2.14 1.2 1 1.6 24.5 31.5 0.727 0.734 0.005 5×35 7/2.52 1.2 1.2 1.6 27 35 0.524 0.529 0.0044
-
It is suitable for fixed wiring of power plant with rated AC voltage U 0/U of 300/500V or less.
-
-
1. The permissible working temperature of the cable for a long time shall not exceed 70 C.2. Cable laying temperature should not be lower than 0 C.3. When the allowable bending radius is less than or equal to 16mm, the cable outer diameter (D) should be no less than 4D and no less than 6D when it is greater than 16mm.4. Insulation and sheath materials are high quality polyvinyl chloride, which can be customized (anti-aging, wear resistance, low temperature resistance, water-proof, oil-proof, chemical corrosion-proof, environmental protection, low smoke and halogen-free, etc.).5. 100m/200m/500m per volume or customized length
-
