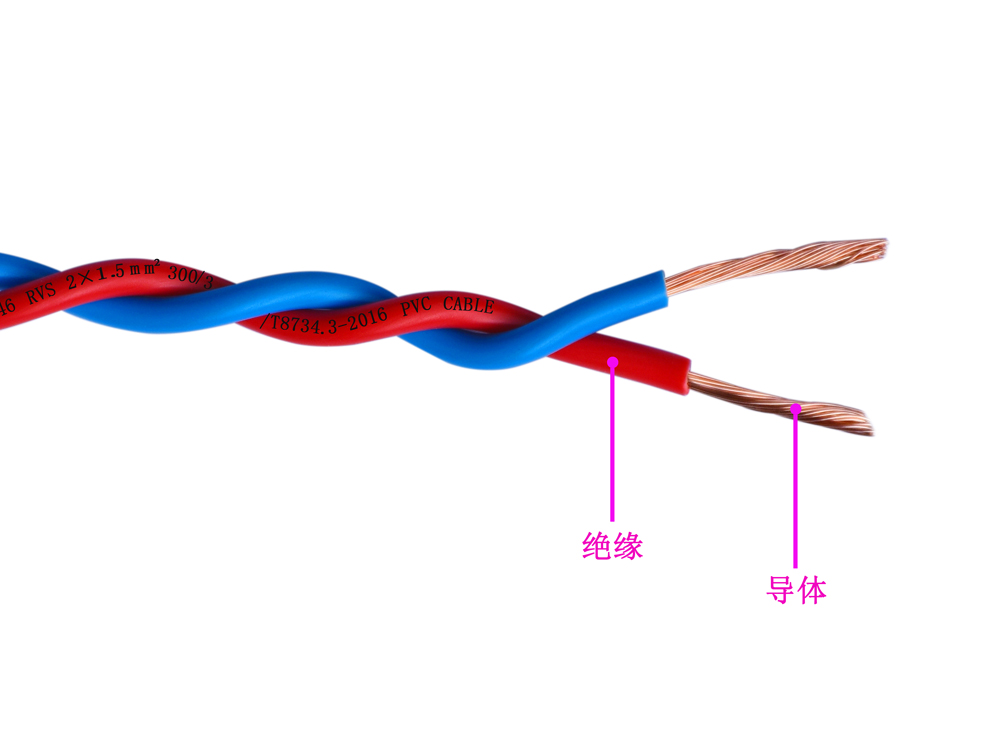

RVS Copper Conductor Soft Wire for PVC Insulated Strand Connection
Implementation criteria: JB/T8734.3-2012
Rated voltage: U 0/U 300/300V
Rated temperature: 70 C
- Product Model, Production Range
- Product Usage
- Product Structure
- Product Performance
- Product Advantage (Selling Point)
- Product Code Identification
-
Comprehensive Data of Soft Wire for RVS 300/300V Copper Core PVC Insulated Strand Connection Core Line * Standard Section (mm2) Conductor structure (NO. / mm) Insulation Thickness Required Value (mm) Upper limit of mean outer diameter (mm) Maximum conductor resistance (_/KM) at 20 C Minimum Insulation Resistance (M_/KM) at 70 Temperature Copper core Tin plated copper core 2×0.50 16/0.20 0.8 6 39 40.1 0.016 2×0.75 24/0.20 0.8 6.2 26 26.7 0.014 2×1.0 32/0.20 0.8 6.6 19.5 20 0.011 2×1.5 30/0.25 0.8 7.2 13.3 13.7 0.01 2×2.5 50/0.25 0.8 8.2 7.98 8.21 0.009 2×4 81/0.25 0.8 9.2 4.95 5.09 0.007 2×6 84/0.30 1 10.6 3.3 3.39 0.006
-
Applicable to AC rated voltage U 0/U 300/300V and below electrical appliances, instruments and power lighting.
-
-
1. The permissible working temperature of the cable for a long time shall not exceed 70 C.2. Cable laying temperature should not be lower than 0 C.3. When the allowable bending radius is less than or equal to 16mm, the cable outer diameter (D) should be no less than 4D and no less than 6D when it is greater than 16mm.4. Insulation material is high-quality polyvinyl chloride, anti-aging, wear resistance, water-proof, oil-proof, chemical corrosion-proof, non-toxic and other characteristics.5. 100m/200m/300m per volume or customized length
-
