Ultra Five Categories 4 Pairs of UTP Cables
standard
YD/T 1019-2013
- Product Model, Production Range
- Product Usage

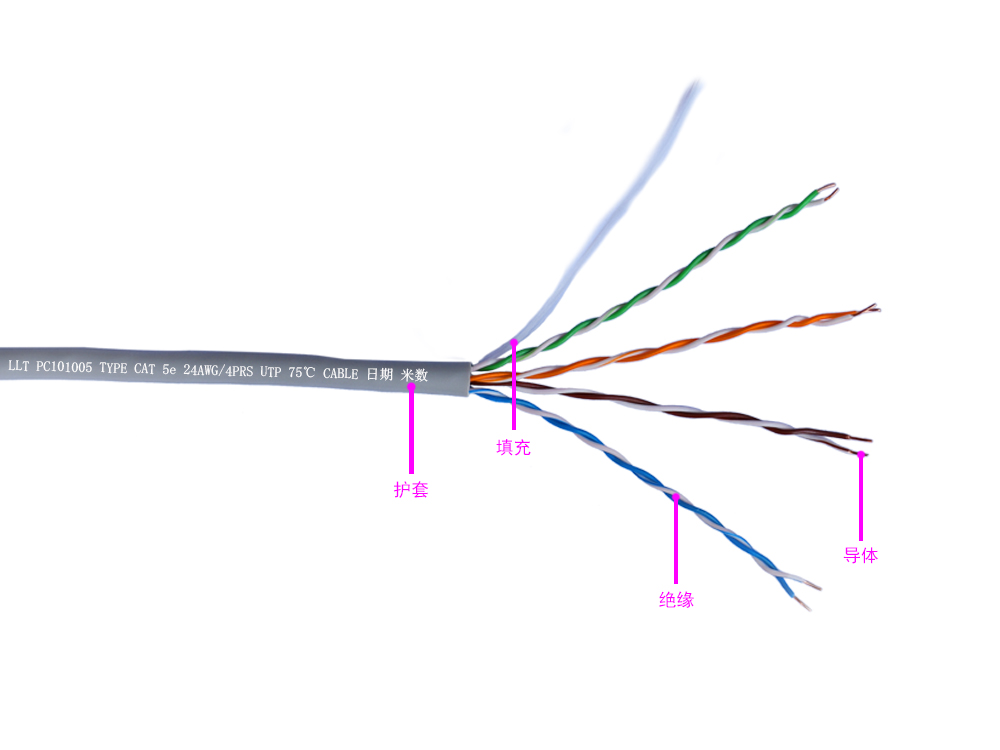

- Product Structure
- Product Performance
- Product Advantage (Selling Point)
- Product Code Identification
-
Typical parameters Typical parameters 指标 Conductor diameter 24AWG External diameter of conductor insulation 0.88±0.01mm Material of outer sheath PVC nom OD 5.4±0.2mm Maximum Resistance of Single Conductor ≤ 9.5Ω/100m Line-to-Line DC Resistance Unbalanced Type ≤ 2.5% Dielectric strength between conductors, DC, 1min 1Kv/1min Maximum working capacitance 5.6nF/100m
-
This product is widely used in indoor horizontal working area wiring and indoor LAN wiring.
-
-
1. Provide 100MHz bandwidth within 90m distance, typical application rate is 100Mbps.2. The product is widely used in indoor horizontal workspace wiring and indoor LAN wiring.3. The product chooses high-quality oxygen-free copper as the transmission conductor. Its electrical transmission performance is reliable and excellent. It achieves and greatly exceeds the five kinds of system indicators. It provides abundant margin support for system links and is convenient for construction and laying.
-
